Integral Pup Joints

FMH General Trading unions are manufactured from steel forging materials appropriate to specific pressure ratting.

End Connections

FMH General Trading Unions are available in a choice end connections, API line pipe threads are standard, butt weld ends and socket weld ends can be provided. The customer should specify the schedule of pipe while ordering.

Sour Service

Sour service is available and all H2S service parts of FMH General Trading unions conform to the latest NACE specification.

Low Temperature Service

FMH General Trading Unions can be supplied for low temperature applications with suitable impact value testing.

Interchangeability

All FMH General Trading union components if the same size and figure number are Weco interchangeable. All Cangold union nuts have 3 hammer lugs.

Traceability

FMH General Trading union are supplied with full traceability documentation for each components.

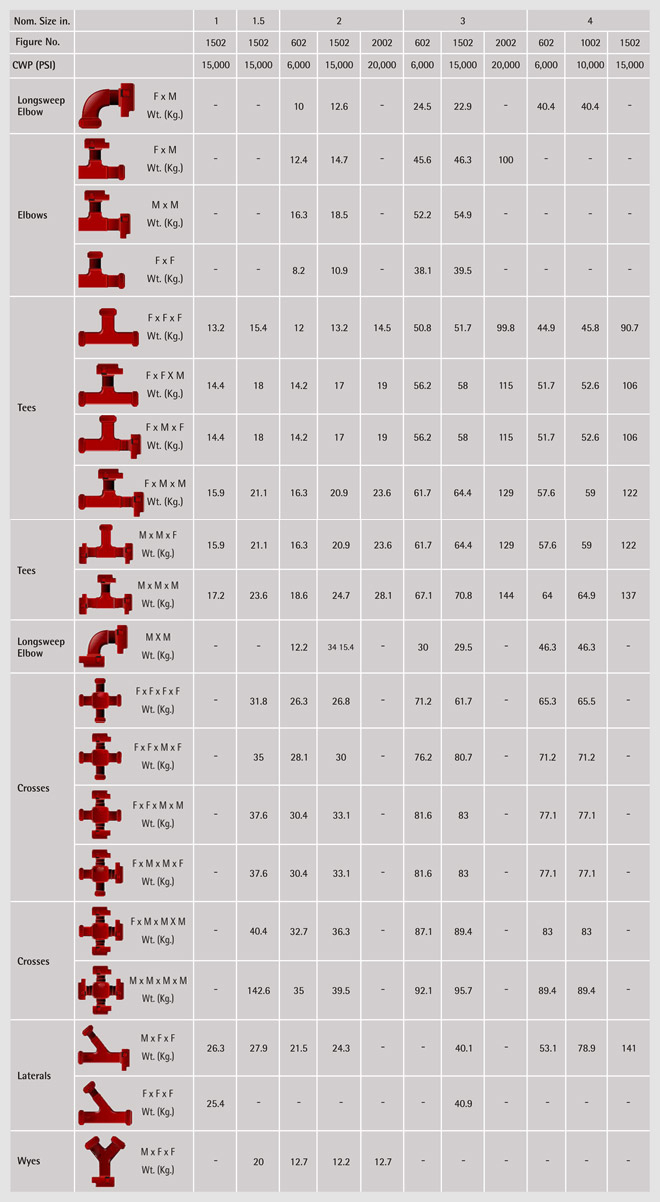

Integral Union Connections

FMH General Trading manufactures a line of high pressure integral union connection in pressure ratings to 15,000 PSI CWP, Including but not limited to crosses, Ells, Tees, Wyes.

Other Wing Union

FMH General Trading also manufacturers a range of hex Union, Hammer seal, Tank union and flat face unions where sealing is dependent on a O-Ring fitted between the Grooves machined on the mating metal parts.

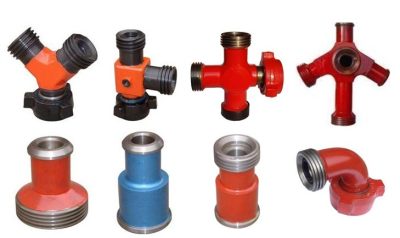

Integral Union Fitting

FMH General Trading also manufacturers flange to wing Adapters, Wing Adapter, Flanged Tees and Crosses and an assortment other products having usage in varied oil field applications.
