FMH General Trading Metallic Ring Gasket are suitable for high pressure and high temperature application. The gasket are available R,RX,BX styles and in oval/octagonal profiles. FMH General Trading manufactures gasket in accordance with specific tolerances on CNC machines.

Prime Features

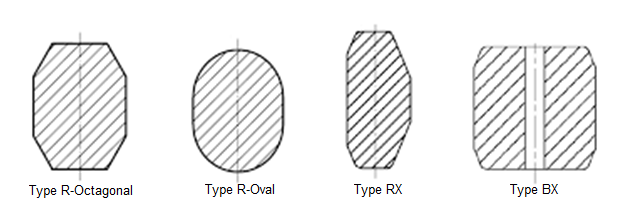

  • R type(Oval and Octagonal) solid section to fit standard ring flanges with trapezoidal grooves.
  • Types RX and BX with complex beveled edge section for wellhead pressures above 700 bar.
  • Combination Gaskets-used where two flanges of different size are to be joined together.
  • Special metal gaskets mad to customer specification.

Materials

  • Standard: Soft iron, Low carbon steel, alloy steels 304,304L,316,316L,321 and 347.
  • Non-Standard: High nickel alloys, super alloy steel and other stainless steel Grades
  • Rubber coated ring gaskets- Soft iron metal ring joint gasket are coated with nitrile rubber for testing wellhead assemblies and valves, rings can be reused and do not damage flange grooves.
